Scan to BIM Services

Turn your point cloud data into 3D as-built models.

Request a quote

OUR SCAN TO BIM PROCESS

STEP 1: CAPTURING THE DATA



Multivista scanning professionals visit site and perform 3D Laser Scanning with our powerful Leica Geosystems scanners.

To learn more about the benefits of 3D laser scanning, check out our Guide to 3D Laser Scanning Technology.

STEP 2: WE ANALYZE AND PROCESS YOUR DATA BASED ON YOUR UNIQUE NEEDS

Multivista will use your point cloud data to create an Autodesk Revit model. Choose from our standard or advanced Architectural packages or Mechanical, Electrical, and Plumbing (MEP) packages based on your project needs.

STEP 3: LEVERAGE YOUR BIM DATA TO MAKE INFORMED DECISIONS AND COMPLETE PROJECTS FASTER

Base your BIM project on accurate, real-world data, rather than relying on inaccurate field methods or outdated existing plans. Save time, reduce errors, improve collaboration, and maximize efficiency with precise field intelligence that you can take anywhere.


OUR SCAN TO BIM PACKAGES

Suitable for clients requiring 3D Revit models for BIM projects, pre-renovation planning, as-built documentation, architectural, structural or MEP coordination and planning. All models correspond to the AIA/BIMForum Level Of Development (LOD) and USIBD Level Of Accuracy (LOA) standards.

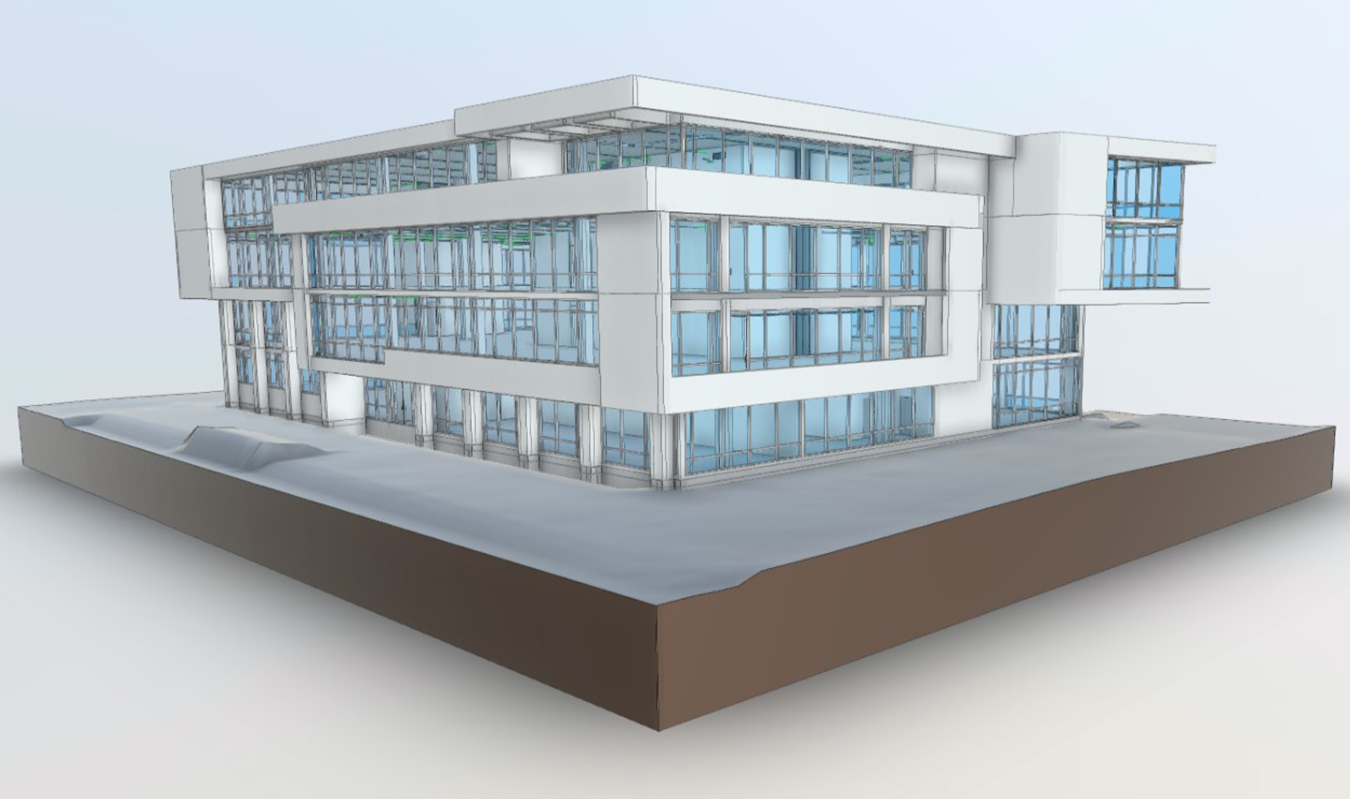

Architectural Scan to BIM

Architectural Base Model includes:
Walls, Curtain walls, Floors, Ceilings, Roof, Columns, Beams, Doors, Windows, Skylights, Openings, Stairs, Ramps, Escalators, Elevators, Hand & Guard Rails, Common Plumbing Fixtures

Architectural Add-on includes:
Built-in Cabinetry, Fireplaces, Decorative Millwork, Window and Door Surrounds, Exterior Façade Details (sweeps and reveals)

Site Add-on includes:
Topographic surface, Fences, Gates, Stairs, Ramps, Representational foliage, Accessory structures

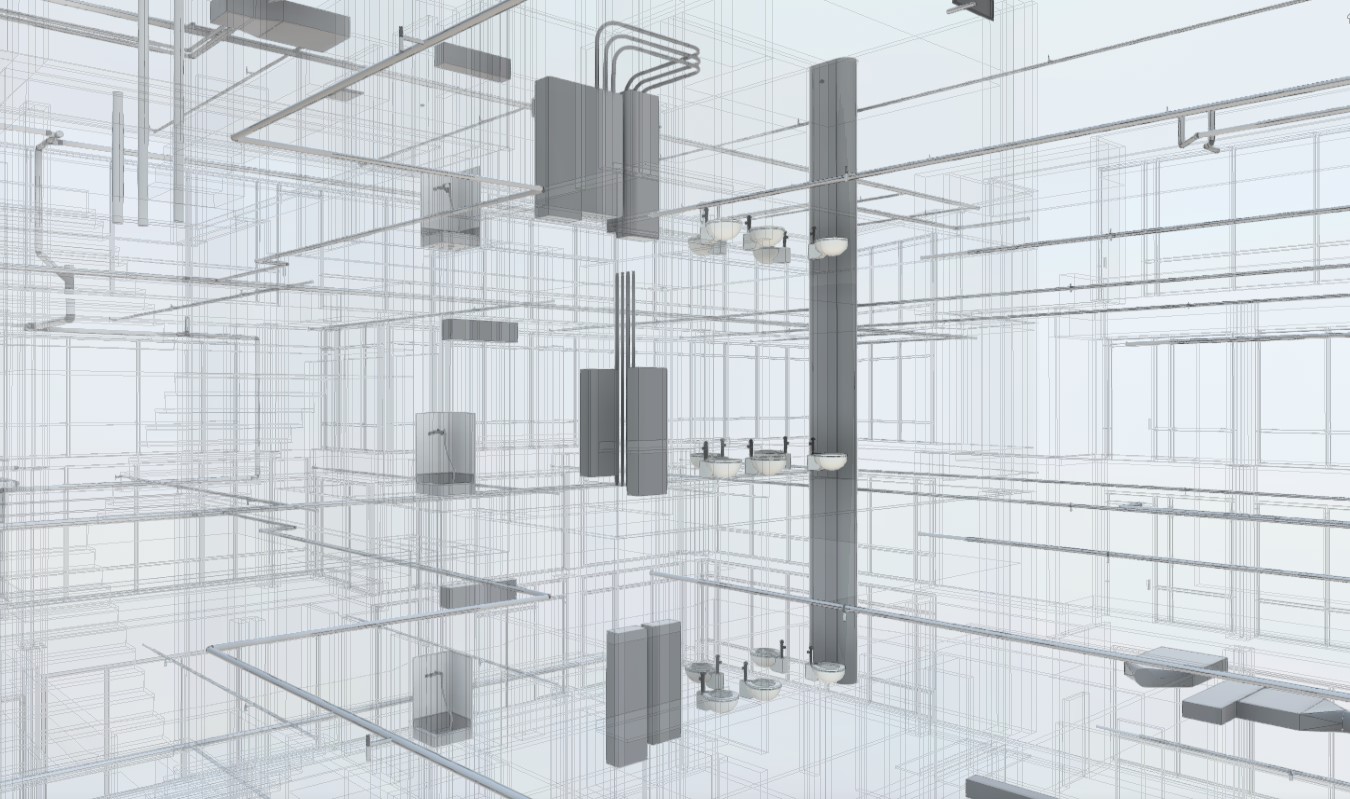

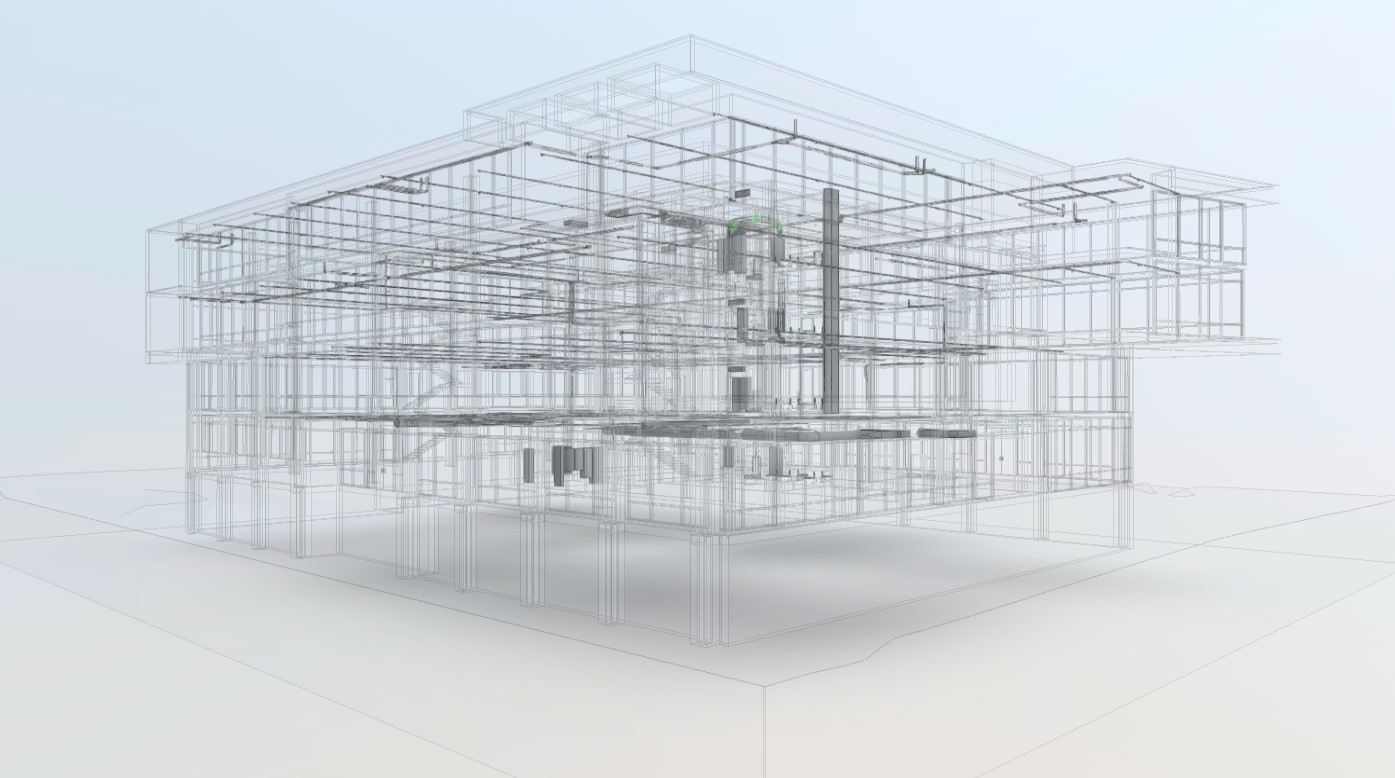

Mechanical, Electrical, and Plumbing (MEP) Scan to BIM

Mechanical Add-on includes:
Ductwork, Supply and return vents, Speciality mechanical equipment, Supplementary heating, Louvers

Electrical Add-on includes:
Light fixtures, Electrical fixtures, Electrical boxes, Security devices, Data outlets, Conduits, Cable trays, Speciality electrical equipment

Plumbing Add-on includes:
Piping (outer dimensions), Fire suppression systems (sprinklers), Sanitary piping, Speciality piping, Exterior drainage and stormwater, Shower fixtures, Gutters, and Scuppers

SCAN TO BIM CHECKLIST



Our checklist is designed to make procuring Scan to BIM easy. Digitally complete the form, tick the standard modelling packages you require for your project, send it to us and we do the rest.

Tell us how you want it modelled, if you have a Revit template and what version and file formats you need.

Download the checklist below and contact us for a quote.



Download Checklist

CONNECT BIM WITH REALITY

Virtually tour and interact with 3D point cloud data on the Multivista online platform. Users can navigate real-world locations captured using Leica Geosystems laser scanners and dimension, mark-up and collaborate through any standard web browser, or through the Multivista app.

British Columbia Institute of Technology (BCIT)

UNIVERSITY CASE STUDY

Full campus-wide Scan to BIM project, laser scanning over 3 million sqft of university facilities for conversion to Autodesk Revit BIM deliverables.

  • Provides up-to-date digital facility data for accurate special planning and asset information
  • Data integrates into facility management (FM) systems and supports workflow management systems (WFMS)
  • Speeds up start and completion of capital projects



Request a quote

To learn more about our Scan to BIM services, please fill out the form below, and someone from our team will be in touch with you shortly.
